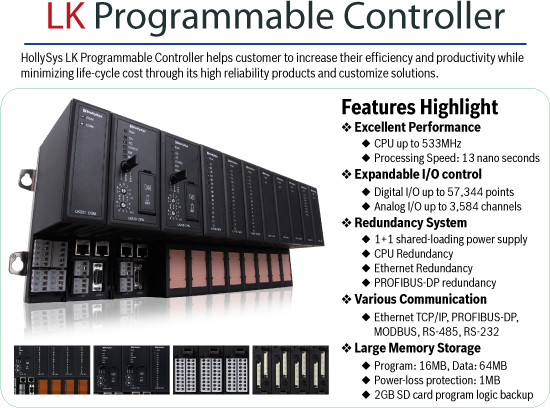

LK SERİSİ


High Performance Processor

• Industrial level 533MHz processor with 13
nanoseconds processing speed.
• Large memory capacity:
- Program: 16MB, Data: 64MB
• 1MB power-loss protection.

• Fast analog and digital signal processing

Processor

• Industrial level 533MHz processor with 13 nanoseconds processing speed.
• Large memory capacity: Program: 16MB, Data: 64MB
• 1MB power-loss protection. Expandable I/O Control
• Flexible system expansion capability.
• Depending on application, the I/O control points are scalable according to user’s needs.
• Total digital I/O control points reaching up to a maximum of 57,344 points.
• Total analog I/O control points reaching up to a maximum of 3,584 point

Various Communication Protocol

• Supports a wide variety of communication protocol (TCP/IP, PROFIBUS-DP, MODBUS, etc.)

Backplane Architecture

• The local backplane provides all the communication link with all the local modules.
(CPU, I/O, communication, special function)
• The backplane’s normal data bus supports up to 12Mbps baud rate while the high-speed data bus supports up to 32Mbps baud rate

Redundancy System

• Power supply redundancy.
• CPU redundancy
• Ethernet redundancy.
• PROFIBUS-DP redundancy

Low Power Consumption

• Low power consumption, CPU module draws ~ 5 watts, I/O module draws around 2 watts



Easy to Use and Maintain

• All modules supports hot-swap.
• Self-diagnostic and fault diagnostic.
• Backplane provides safety insertion-keys preventing incorrect module insertion

Compact Structural Design

• Integrated design saving installation space

Easy and Time-saving Installation

• Spring-cage wiring terminal.
• Backplane mounting with screws.

Standard Programming Languages

• The programming software supports IEC-61131-3 standard.
• Supports 6 programming language (LD, IL,FBD, ST, SFC, CFC)

Graphical HMI Designer

• Graphical Libraries.
• Alarms, reports, logs, and historical trend.
• User friendly interface
